Cloverdale ADU

Concept Model NW
Concept Model NW

3D Concept Model: Roof and Layout study

Great Room
Great Room

View from loft above: Great Room with 8 foot tall sliding glass doors to 400 sq.ft. exterior entertaining deck with surrounding mountain and valley views.

Deck
Deck

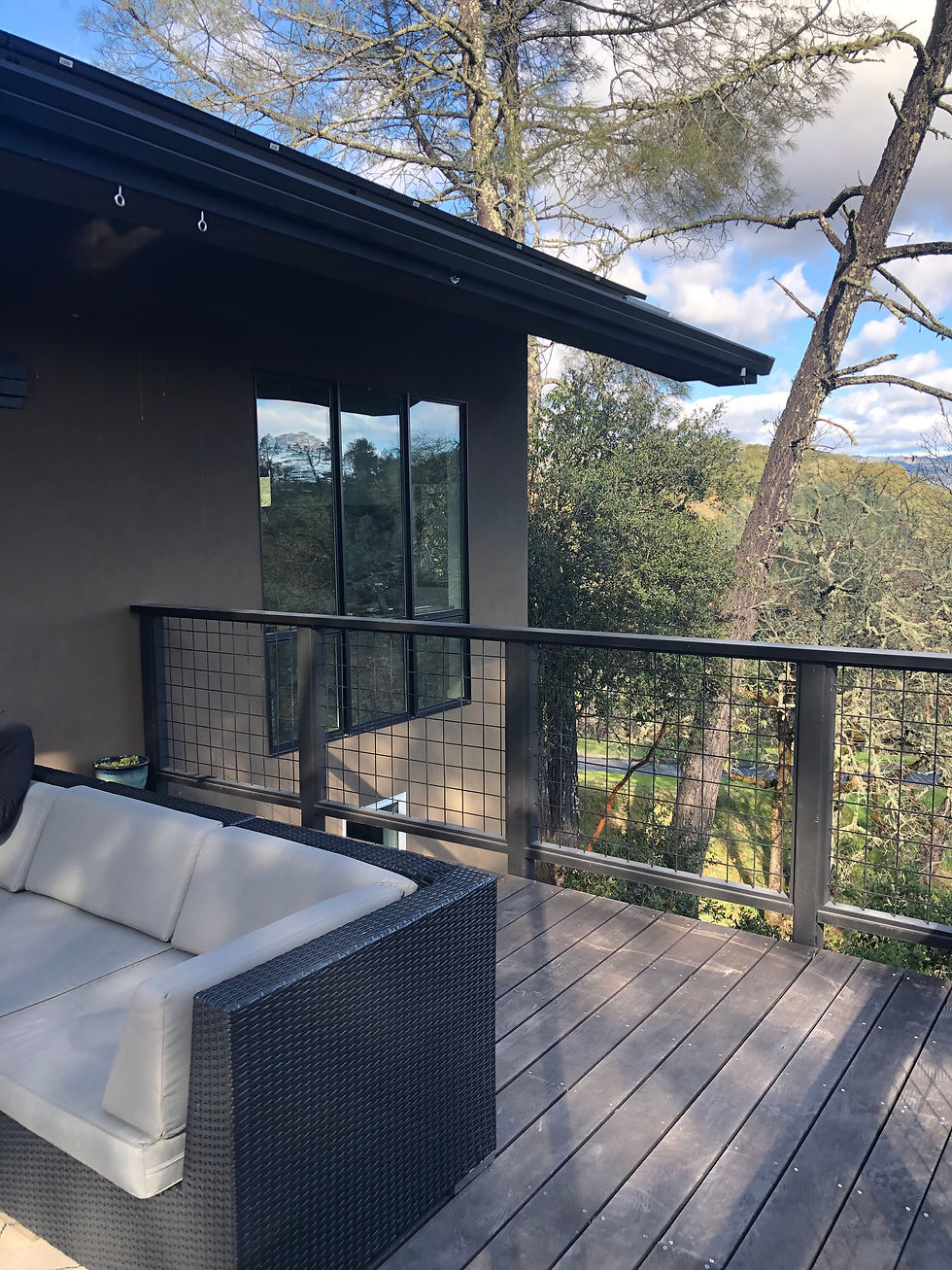

400 sq.ft. outdoor Deck above Storage Room below. Deep roof overhang to protect from hot Sun & Storm exposure.

Great Room 1
Great Room 1

Interior view of Great Room from 400 sq.ft. exterior deck to Kitchen and vaulted ceilings

Great Room 2
Great Room 2

Great Room from loft above looking at living area and out 8 foot sliding glass doors to exterior deck.

Great Room 3
Great Room 3

View from loft above: Great Room Living, Dining, and Kitchen Island.

Great Room 4
Great Room 4

Kitchen Island and built-in display shelving beyond with storage drawers below. (ADU's need Storage!) Elevated Gas fireplace between built-in's.

Great Room 5
Great Room 5

Great Room: Island and Dining table at Picture window overlook.

Great Room 6
Great Room 6

Great Room: Kitchen and Build-in's

Loft Access Stair
Loft Access Stair

Loft access stair. Laundry area behind doors in hall below.

Laundry Area
Laundry Area

Laundry Area concealed behind folding doors when not in use.

Master Bedroom
Master Bedroom

Bedroom with wonderful built-in wardrobe/storage closets with pull-out drawers below

Master Bedroom
Master Bedroom

Bedroom with more wonderful built-in wardrobe/storage closets with pull-out drawers below. ADU's need Storage!

Master Bedroom
Master Bedroom

Bedroom & Picture Window to views of surrounding mountains and valleys. Deep roof overhang protects window and interior from Sun and Storms.

Bathroom
Bathroom

A peek into the Bathroom: Enclosed Toilet compartment (behind privacy glass door). Linen storage. Walk-in shower opening beyond and window for natural light and ventilation.

This Cloverdale ADU is a rebuild of an existing 3-car garage and storage structure. We removed the roof to accommodate a1040 sq.ft. ADU with adjacent 500 sq.ft. exterior deck built over storage room below.



We utilize 3D software to be able to study and share the model with our client. We are able to look at the project as it develops from any angle we choose. We can do this "live" with clients in Zoom meeting or in our office.



I had previously worked with the property owners and designed their primary residence on the property.

This was another collaboration with the family to create a living unit for a new family to live on the property.
